AGENS AMV (Dispersing)


Turbulent flow


Static Mixer with elements - Type AGENS® AMV

Dispersing of low viscous liquids/ gases


The AGENS® AMV Mixer bonds insoluble fluids to each other in a continous current. The disperse phase leaves the mixer as a droplet or bubble cluster. The smaller the generated droplets or bubbles, the larger the interphase boundary. The hydraulic diameter of the built-in components thus has high significance.


amvdh


Advantages of the AGENS® AMV structure

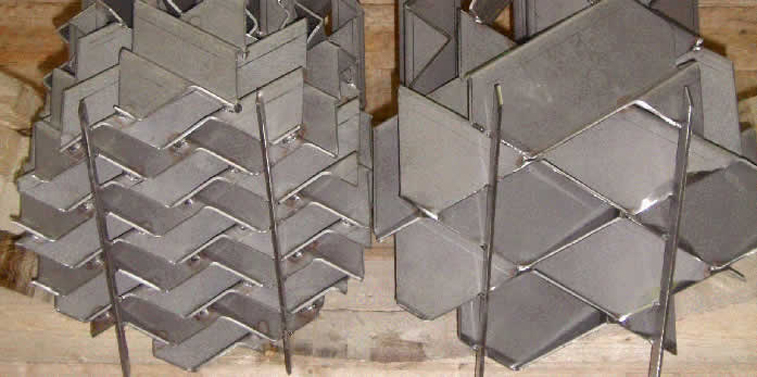

• The hydraulic diameter can be precisely adjusted by determining
  the number of layers (see image below).


• The bubble or droplet diameter can be calculated

• Mass transfer can be calculated

• Reliable scale-up from pilot plant station to operating dimensions

The AGENS AMV geometry can be realized in a wide variety of
reactor types. The type spectrum ranges from small static mixers
DN 25 to
large pipe reactors.

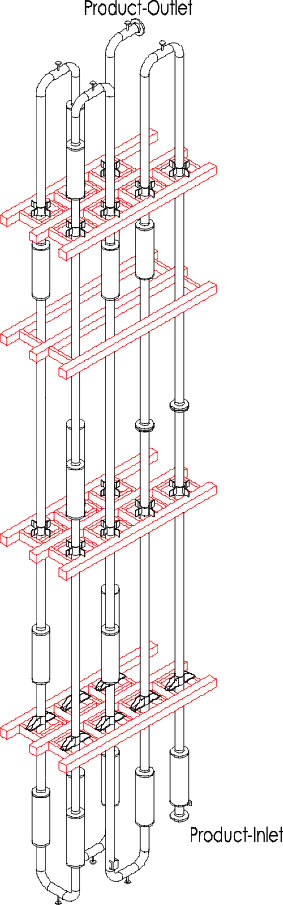

The following example illustrates a slow-moving 2-phase reaction
in a 140 m long pipe reactor. The dimensioning of this reactor is
based on pilot plant tests

Additional Typical Applications

• Hydrocarbon neutalization

• Phosgenation of bisphenol

• Chlorination

• Hydrogenation

• Air, CO2, O2 or ozon in drinking water

reaktor




outlet
